Multi-class Classification

Strategies for multi-class classification using logistic regression, including preprocessing, modeling, and evaluation.

Estimated reading time: ~30 minutes

Multi-class Classification

Objectives

• Understand one-hot encoding for categorical variables
• Implement logistic regression for multi-class classification using One-vs-All (OvA) and One-vs-One (OvO) strategies
• Evaluate model performance using appropriate metrics

Dataset

Obesity Risk Prediction dataset from UCI Library. The dataset contains 17 attributes and 2,111 samples.

The attributes of the dataset are descibed below.

Variable Name	Type	Description
Gender	Categorical
Age	Continuous
Height	Continuous
Weight	Continuous
family_history_with_overweight	Binary	Has a family member suffered or suffers from overweight?
FAVC	Binary	Do you eat high caloric food frequently?
FCVC	Integer	Do you usually eat vegetables in your meals?
NCP	Continuous	How many main meals do you have daily?
CAEC	Categorical	Do you eat any food between meals?
SMOKE	Binary	Do you smoke?
CH2O	Continuous	How much water do you drink daily?
SCC	Binary	Do you monitor the calories you eat daily?
FAF	Continuous	How often do you have physical activity?
TUE	Integer	How much time do you use technological devices such as cell phone, videogames, television, computer and others?
CALC	Categorical	How often do you drink alcohol?
MTRANS	Categorical	Which transportation do you usually use?
NObeyesdad	Categorical	Obesity level

Preprocessing

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import OneHotEncoder, StandardScaler
from sklearn.linear_model import LogisticRegression
from sklearn.multiclass import OneVsOneClassifier
from sklearn.metrics import accuracy_score
import warnings
warnings.filterwarnings('ignore')

file_path = "https://cf-courses-data.s3.us.cloud-object-storage.appdomain.cloud/GkDzb7bWrtvGXdPOfk6CIg/Obesity-level-prediction-dataset.csv"
data = pd.read_csv(file_path)

Exploratory Data Analysis (EDA)

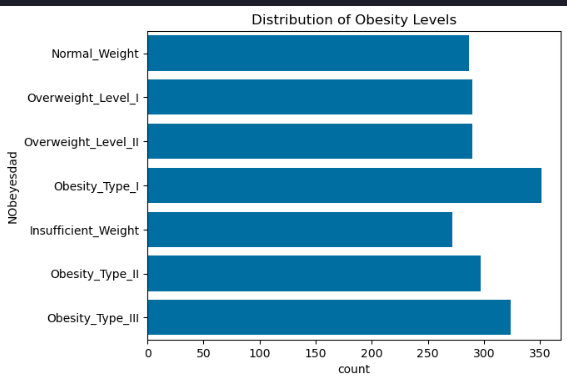

# Distribution of target variable
sns.countplot(y='NObeyesdad', data=data)
plt.title('Distribution of Obesity Levels')
plt.show()

Feature Scaling and Encoding

continuous_columns = data.select_dtypes(include=['float64']).columns.tolist()
scaler = StandardScaler()
scaled_features = scaler.fit_transform(data[continuous_columns])
scaled_df = pd.DataFrame(scaled_features, columns=scaler.get_feature_names_out(continuous_columns))
scaled_data = pd.concat([data.drop(columns=continuous_columns), scaled_df], axis=1)
categorical_columns = scaled_data.select_dtypes(include=['object']).columns.tolist()
categorical_columns.remove('NObeyesdad')
encoder = OneHotEncoder(sparse_output=False, drop='first')
encoded_features = encoder.fit_transform(scaled_data[categorical_columns])
encoded_df = pd.DataFrame(encoded_features, columns=encoder.get_feature_names_out(categorical_columns))
prepped_data = pd.concat([scaled_data.drop(columns=categorical_columns), encoded_df], axis=1)
prepped_data['NObeyesdad'] = prepped_data['NObeyesdad'].astype('category').cat.codes
X = prepped_data.drop('NObeyesdad', axis=1)
y = prepped_data['NObeyesdad']

Train/Test Split

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42, stratify=y)

Modeling

One-vs-All (OvA)

model_ova = LogisticRegression(multi_class='ovr', max_iter=1000)
model_ova.fit(X_train, y_train)
y_pred_ova = model_ova.predict(X_test)
print("OvA Accuracy:", accuracy_score(y_test, y_pred_ova))

One-vs-All (OvA) Strategy Accuracy: 76.12%

One-vs-One (OvO)

model_ovo = OneVsOneClassifier(LogisticRegression(max_iter=1000))
model_ovo.fit(X_train, y_train)
y_pred_ovo = model_ovo.predict(X_test)
print("OvO Accuracy:", accuracy_score(y_test, y_pred_ovo))

One-vs-One (OvO) Strategy Accuracy: 92.2%

Experimenting with different test sizes

# Experiment with different test sizes
for test_size in [0.1, 0.3]:
    X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=test_size, random_state=42, stratify=y)
    model_ova = LogisticRegression(multi_class='ovr', max_iter=1000)
    model_ova.fit(X_train, y_train)
    y_pred = model_ova.predict(X_test)
    acc = accuracy_score(y_test, y_pred)
    print(f"Test Size: {test_size}")
    print(f"Accuracy: {acc:.4f}")
    print("-"*30)

Test Size: 0.1

Accuracy: 0.7594

---

Test Size: 0.3

Accuracy: 0.7492

Feature Importance

# Feature importance plots for OvA and OvO models

# Ensure models are trained (uses previously trained models if available)
if 'model_ova' not in globals():
    model_ova = LogisticRegression(multi_class='ovr', max_iter=1000)
    model_ova.fit(X_train, y_train)

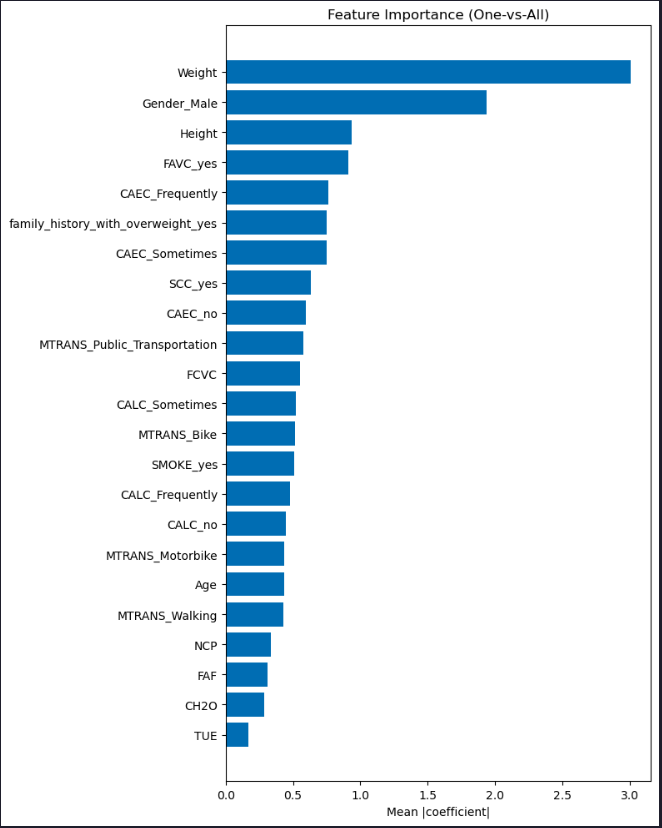

# OvA feature importance (mean absolute coefficients across classes)
ova_importance = np.mean(np.abs(model_ova.coef_), axis=0)
order = np.argsort(ova_importance)
plt.figure(figsize=(8, 10))
plt.barh(np.array(X.columns)[order], ova_importance[order])
plt.title("Feature Importance (One-vs-All)")
plt.xlabel("Mean |coefficient|")
plt.tight_layout()
plt.show()

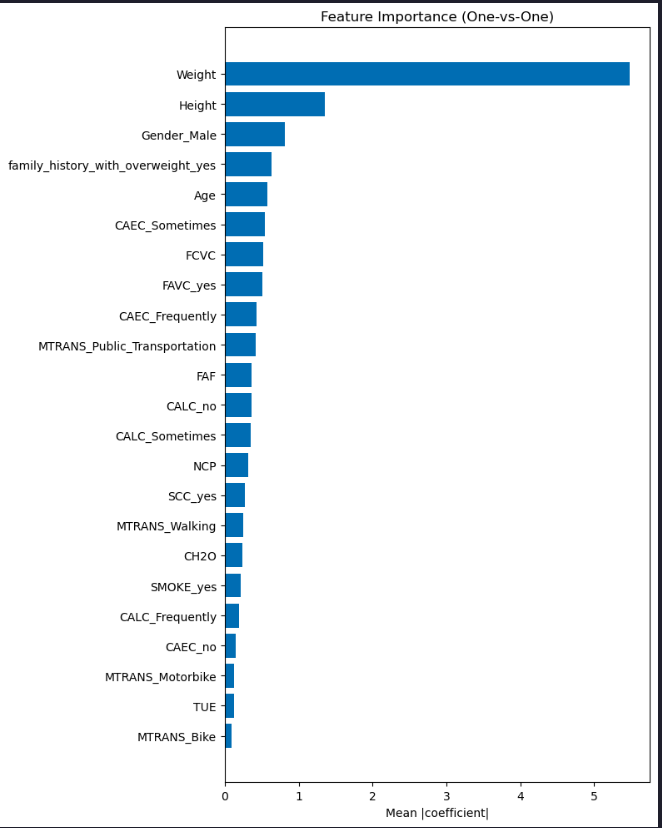

# OvO feature importance
if 'model_ovo' not in globals():
    model_ovo = OneVsOneClassifier(LogisticRegression(max_iter=1000))
    model_ovo.fit(X_train, y_train)

coefs = np.array([est.coef_[0] for est in model_ovo.estimators_])
ovo_importance = np.mean(np.abs(coefs), axis=0)
order = np.argsort(ovo_importance)
plt.figure(figsize=(8, 10))
plt.barh(np.array(X.columns)[order], ovo_importance[order])
plt.title("Feature Importance (One-vs-One)")
plt.xlabel("Mean |coefficient|")
plt.tight_layout()
plt.show()
