Machine Learning Pipelines and GridSearchCV

Machine Learning
AI Engineering
A comprehensive guide to building and optimizing machine learning pipelines using Scikit-Learn’s Pipeline and GridSearchCV.
Author

DOSSEH Ameck Guy-Max Désiré

Published

September 5, 2025

Estimated reading time: ~25 minutes

Machine Learning Pipelines and GridSearchCV

Objectives

  • Build and evaluate a machine learning pipeline

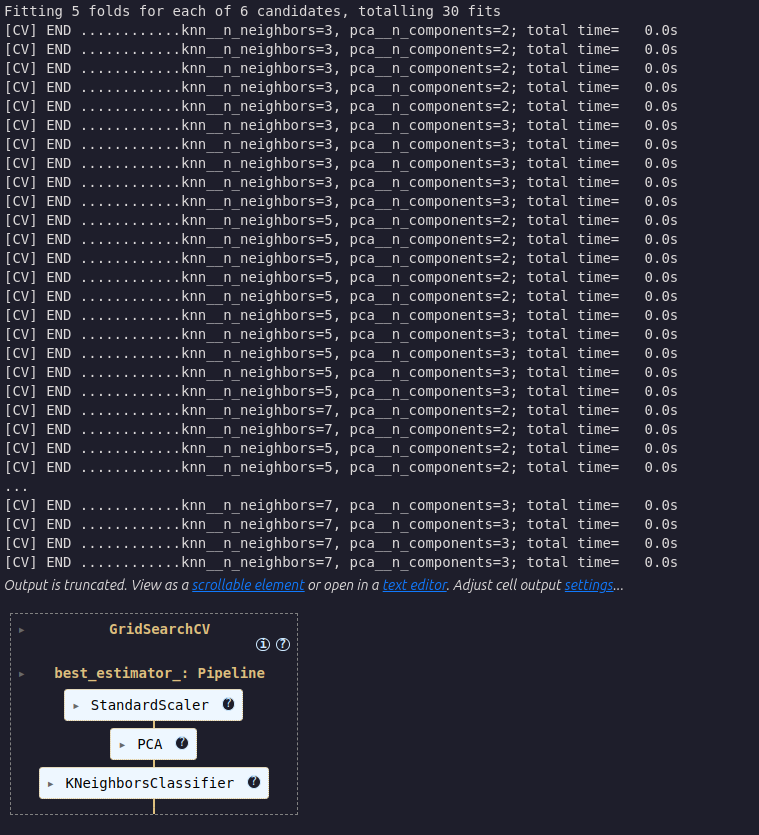

  • Implement GridSearchCV for hyperparameter tuning with cross-validation
  • Implement and optimize a complex classification pipeline using real-world data
  • Extract feature importances from a trained pipeline

Introduction

In machine learning workflows, the Pipeline class from Scikit-Learn is invaluable for streamlining data preprocessing and model training into a single, coherent sequence. A pipeline is essentially a sequence of data transformers that culminates with an optional final predictor. This structure enables seamless integration of preprocessing and predictive modeling, ensuring that the same data transformations applied during training are consistently applied to new data during prediction.

Each intermediate step in a pipeline must be a transformer, meaning it should implement both fit and transform methods. The final step, which is typically a predictive model, or estimator, only requires a fit method. The entire pipeline can be trained simultaneously using a method like GridSearchCV, resulting in a self-contained predictor that can be used to make predictions on unseen data.

Importantly, the pipeline allows you to set the parameters of each of these steps using their names and parameter names connected by a double underscore __. For example, if a pipeline step is named imputer and you want to change its strategy, you can pass a parameter like imputer__strategy='median'. Additionally, steps can be entirely swapped out by assigning a different estimator or even bypassed by setting them to 'passthrough' or None.

A major advantage of using a pipeline is that it enables comprehensive cross-validation and hyperparameter tuning for all steps simultaneously. By integrating the pipeline within GridSearchCV, you can fine-tune not only the model but also the preprocessing steps, leading to optimized overall performance. Pipelines are essential for scenarios where preprocessing involves estimators performing operations like scaling, encoding categorical variables, imputing missing values, and dimensionality reduction. Pipelines ensure these steps are reproducibly applied to both training and test data.

Steps

Import the required libraries

import matplotlib.pyplot as plt
from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split, GridSearchCV, StratifiedKFold
from sklearn.preprocessing import StandardScaler
from sklearn.decomposition import PCA
from sklearn.neighbors import KNeighborsClassifier
from sklearn.pipeline import Pipeline
import seaborn as sns
from sklearn.metrics import confusion_matrix

Train a model using a pipeline

We’ll start with an example of building a pipeline, fitting it to the Iris data, and evaluating its accuracy.

data = load_iris()
X, y = data.data, data.target
labels = data.target_names

Instantiate a pipeline consisting of StandardScaler, PCA, and KNeighborsClassifier

pipeline = Pipeline([
    ('scaler', StandardScaler()),       # Step 1: Standardize features
    ('pca', PCA(n_components=2)),       # Step 2: Reduce dimensions to 2 using PCA
    ('knn', KNeighborsClassifier(n_neighbors=5))  # Step 3: K-Nearest Neighbors classifier
])

Split the data into training and test sets (stratified)

X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.2, random_state=42, stratify=y
)

Fit the pipeline on the training set and evaluate accuracy

pipeline.fit(X_train, y_train)
# Measure the pipeline accuracy on the test data
test_score = pipeline.score(X_test, y_test)
print(f"{test_score:.3f}")

test_score: 0.900

Get the model predictions

y_pred = pipeline.predict(X_test)

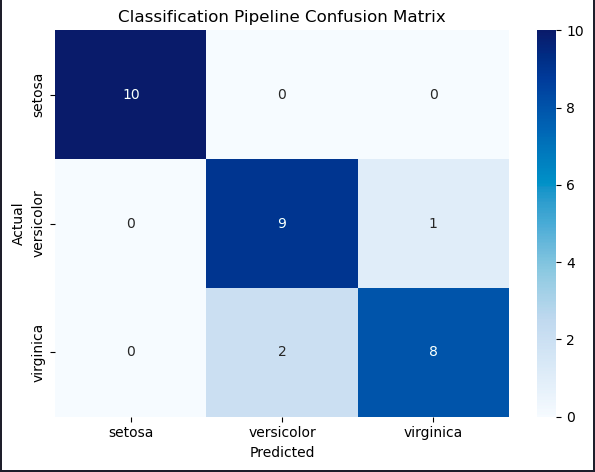

Generate the confusion matrix for the KNN model and plot it

conf_matrix = confusion_matrix(y_test, y_pred)
plt.figure()
sns.heatmap(conf_matrix, annot=True, cmap='Blues', fmt='d',
            xticklabels=labels, yticklabels=labels)
plt.title('Classification Pipeline Confusion Matrix')
plt.xlabel('Predicted')
plt.ylabel('Actual')
plt.tight_layout()
plt.show()

Describe the errors made by the model

The model incorrectly classified two virginica irises as versicolor, and one versicolor as virginica. Only three classification errors out of 30 irises on our first attempt!
