Rainfall Prediction Classifier

Building a Rainfall Prediction Classifier using Pipelines and Grid Search

Estimated reading time: ~15 minutes

Final Project: Building a Rainfall Prediction Classifier

Objectives

• Explore and perform feature engineering on a real-world data set
• Build a classifier pipeline and optimize it using grid search cross validation
• Evaluate your model by interpreting various performance metrics and visualizations
• Implement a different classifier by updating your pipeline

About The Dataset

The dataset contains observations of weather metrics for each day from 2008 to 2017 in Australia. Features include temperature, rainfall, wind, humidity, pressure, cloud cover, and rain indicators.

The dataset you’ll use in this project was downloaded from Kaggle at https://www.kaggle.com/datasets/jsphyg/weather-dataset-rattle-package/ Column definitions were gathered from http://www.bom.gov.au/climate/dwo/IDCJDW0000.shtml

The dataset contains observations of weather metrics for each day from 2008 to 2017, and includes the following fields:

Field	Description	Unit	Type
Date	Date of the Observation in YYYY-MM-DD	Date	object
Location	Location of the Observation	Location	object
MinTemp	Minimum temperature	Celsius	float
MaxTemp	Maximum temperature	Celsius	float
Rainfall	Amount of rainfall	Millimeters	float
Evaporation	Amount of evaporation	Millimeters	float
Sunshine	Amount of bright sunshine	hours	float
WindGustDir	Direction of the strongest gust	Compass Points	object
WindGustSpeed	Speed of the strongest gust	Kilometers/Hour	object
WindDir9am	Wind direction averaged over 10 minutes prior to 9am	Compass Points	object
WindDir3pm	Wind direction averaged over 10 minutes prior to 3pm	Compass Points	object
WindSpeed9am	Wind speed averaged over 10 minutes prior to 9am	Kilometers/Hour	float
WindSpeed3pm	Wind speed averaged over 10 minutes prior to 3pm	Kilometers/Hour	float
Humidity9am	Humidity at 9am	Percent	float
Humidity3pm	Humidity at 3pm	Percent	float
Pressure9am	Atmospheric pressure reduced to mean sea level at 9am	Hectopascal	float
Pressure3pm	Atmospheric pressure reduced to mean sea level at 3pm	Hectopascal	float
Cloud9am	Fraction of the sky obscured by cloud at 9am	Eights	float
Cloud3pm	Fraction of the sky obscured by cloud at 3pm	Eights	float
Temp9am	Temperature at 9am	Celsius	float
Temp3pm	Temperature at 3pm	Celsius	float
RainToday	If there was at least 1mm of rain today	Yes/No	object
RainTomorrow	If there is at least 1mm of rain tomorrow	Yes/No	object

Install and import the required libraries

import pandas as pd
import matplotlib.pyplot as plt
from sklearn.compose import ColumnTransformer
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler, OneHotEncoder
from sklearn.model_selection import train_test_split, GridSearchCV, StratifiedKFold
from sklearn.ensemble import RandomForestClassifier
from sklearn.linear_model import LogisticRegression
from sklearn.metrics import classification_report, confusion_matrix, ConfusionMatrixDisplay, roc_curve
import seaborn as sns

Load the data

url="https://cf-courses-data.s3.us.cloud-object-storage.appdomain.cloud/_0eYOqji3unP1tDNKWZMjg/weatherAUS-2.csv"
df = pd.read_csv(url)
df = df.dropna()

Data Preparation

df = df.rename(columns={'RainToday': 'RainYesterday','RainTomorrow': 'RainToday'})
df = df[df.Location.isin(['Melbourne','MelbourneAirport','Watsonia',])]
def date_to_season(date):
    month = date.month
    if (month == 12) or (month == 1) or (month == 2):
        return 'Summer'
    elif (month == 3) or (month == 4) or (month == 5):
        return 'Autumn'
    elif (month == 6) or (month == 7) or (month == 8):
        return 'Winter'
    elif (month == 9) or (month == 10) or (month == 11):
        return 'Spring'
df['Date'] = pd.to_datetime(df['Date'])
df['Season'] = df['Date'].apply(date_to_season)
df = df.drop(columns=['Date'])

Feature and Target Definition

X = df.drop(columns=['RainToday'], axis=1)
y = df['RainToday']

Train/Test Split

from sklearn.model_selection import train_test_split
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, stratify=y, random_state=42)

Preprocessing and Pipeline

numeric_features = X_train.select_dtypes(include=['number']).columns.tolist()
categorical_features = X_train.select_dtypes(include=['object', 'category']).columns.tolist()
numeric_transformer = Pipeline(steps=[('scaler', StandardScaler())])
categorical_transformer = Pipeline(steps=[('onehot', OneHotEncoder(handle_unknown='ignore'))])
preprocessor = ColumnTransformer(
    transformers=[
        ('num', numeric_transformer, numeric_features),
        ('cat', categorical_transformer, categorical_features),
    ]
)
pipeline = Pipeline(steps=[
    ('preprocessor', preprocessor),
    ('classifier', RandomForestClassifier(random_state=42))
])

Grid Search and Model Evaluation

param_grid = {
    'classifier__n_estimators': [50, 100],
    'classifier__max_depth': [None, 10, 20],
    'classifier__min_samples_split': [2, 5]
}
cv = StratifiedKFold(n_splits=5, shuffle=True)
grid_search = GridSearchCV(pipeline, param_grid, cv=cv, scoring='accuracy', verbose=2)
grid_search.fit(X_train, y_train)
test_score = grid_search.score(X_test, y_test)
print("Test set score: {:.2f}".format(test_score))
y_pred = grid_search.predict(X_test)
print("\nClassification Report:")
print(classification_report(y_test, y_pred))

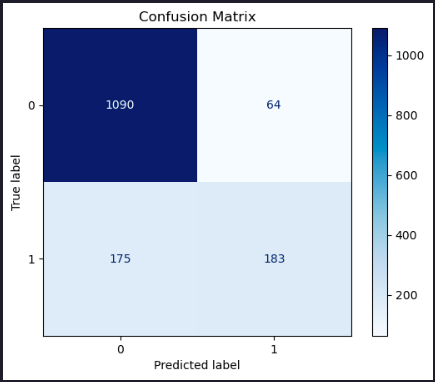

conf_matrix = confusion_matrix(y_test, y_pred)
disp = ConfusionMatrixDisplay(confusion_matrix=conf_matrix)
disp.plot(cmap='Blues')
plt.title('Confusion Matrix')
plt.show()

Test set score: 0.84

Classification Report:
              precision    recall  f1-score   support

          No       0.86      0.94      0.90      1154
         Yes       0.74      0.51      0.60       358

    accuracy                           0.84      1512
   macro avg       0.80      0.73      0.75      1512
weighted avg       0.83      0.84      0.83      1512

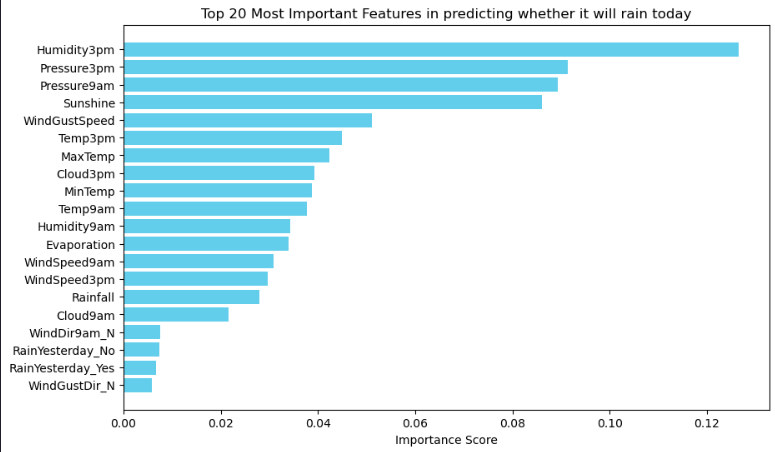

Feature Importances

Now let’s extract the feature importances and plot them as a bar graph.

# Combine numeric and categorical feature names
feature_names = numeric_features + list(grid_search.best_estimator_['preprocessor']
                                        .named_transformers_['cat']
                                        .named_steps['onehot']
                                        .get_feature_names_out(categorical_features))

feature_importances = grid_search.best_estimator_['classifier'].feature_importances_

importance_df = pd.DataFrame({'Feature': feature_names,
                              'Importance': feature_importances
                             }).sort_values(by='Importance', ascending=False)

N = 20  # Change this number to display more or fewer features
top_features = importance_df.head(N)

# Plotting
plt.figure(figsize=(10, 6))
plt.barh(top_features['Feature'], top_features['Importance'], color='skyblue')
plt.gca().invert_yaxis()  # Invert y-axis to show the most important feature on top
plt.title(f'Top {N} Most Important Features in predicting whether it will rain today')
plt.xlabel('Importance Score')
plt.show()

Let’s try another model: Logistic Regression

pipeline.set_params(classifier=LogisticRegression(random_state=42, max_iter=1000))
grid_search.estimator = pipeline
param_grid = {
    'classifier__solver': ['liblinear'],
    'classifier__penalty': ['l1', 'l2'],
    'classifier__class_weight': [None, 'balanced']
}
grid_search.param_grid = param_grid
grid_search.fit(X_train, y_train)
y_pred = grid_search.predict(X_test)
print(classification_report(y_test, y_pred))

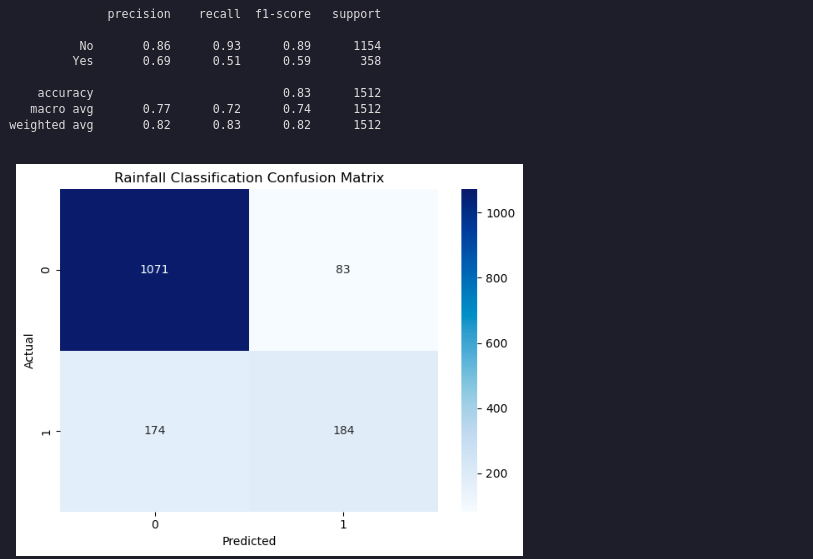

# Generate the confusion matrix
conf_matrix = confusion_matrix(y_test, y_pred)

plt.figure()
sns.heatmap(conf_matrix, annot=True, cmap='Blues', fmt='d')

# Set the title and labels
plt.title('Rainfall Classification Confusion Matrix')
plt.xlabel('Predicted')
plt.ylabel('Actual')

# Show the plot
plt.tight_layout()
plt.show()

Summary

This article demonstrated how to build a rainfall prediction classifier using pipelines, grid search, and feature engineering, and how to compare different models.
